Neo Geo MVS MV1B

Cost reduced 1-slot MVS version. See HERE for details.

Schematics / Maps

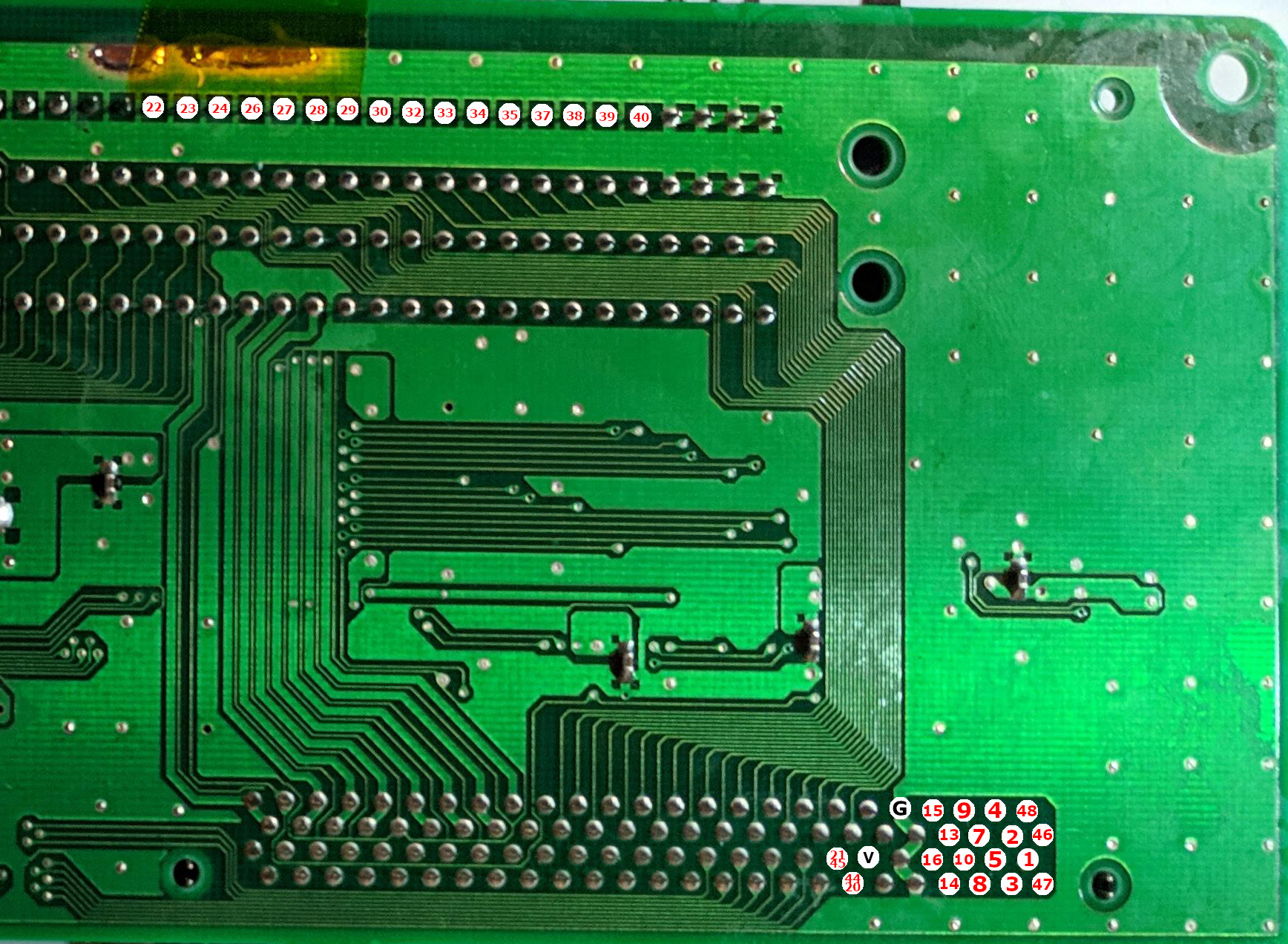

• GA1 top board underside pin mapping

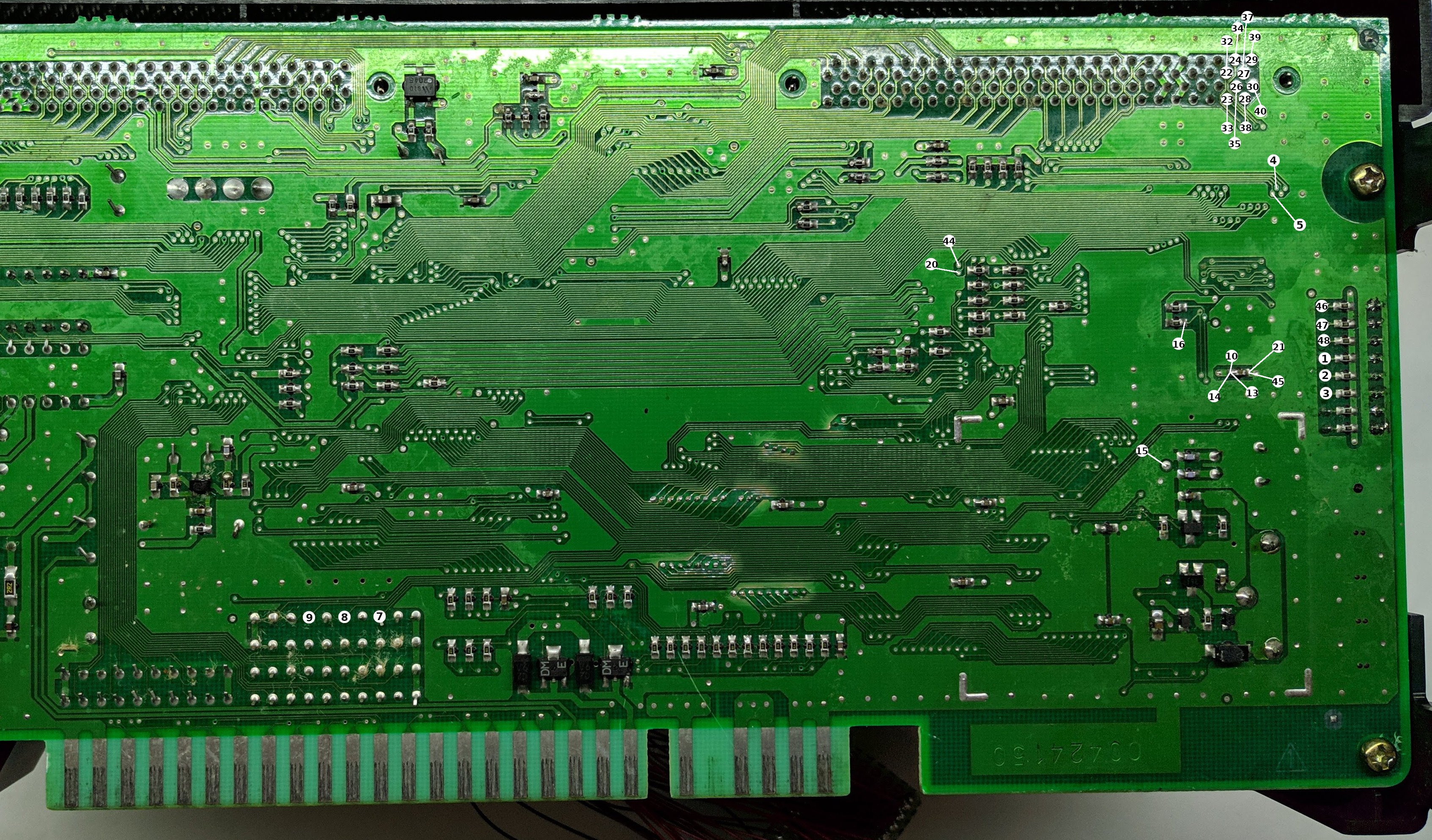

• GA2 bottom board underside pin mapping

Notes

Part of the electronics is on the top board. If the bottom board is powered on with diagnostic bios and the top part disconnected, it hangs at a blue screen.

Specimens

MV1B - 00

This one presented the "click of death".

• Dead GA2 (NEO-BUF), causing short on data line. Replaced with 2x 74HC245
• Dead GA1 (NEO-BUF), causing erratic behaviour on data line (board booted only when cart slot was... massaged). Replaced with 2x 74HC245
• Replaced dead RAM1 and 3 (probably caused by GA2)
• Also replaced RAM 2 and 4 as safety measure
• Replaced RAM5, died during testing
• Battery backup removed
• Replaced Z80, was giving communication error during testing
• Corroded trace in proximity of D4990
• Replaced all electrolytic caps
